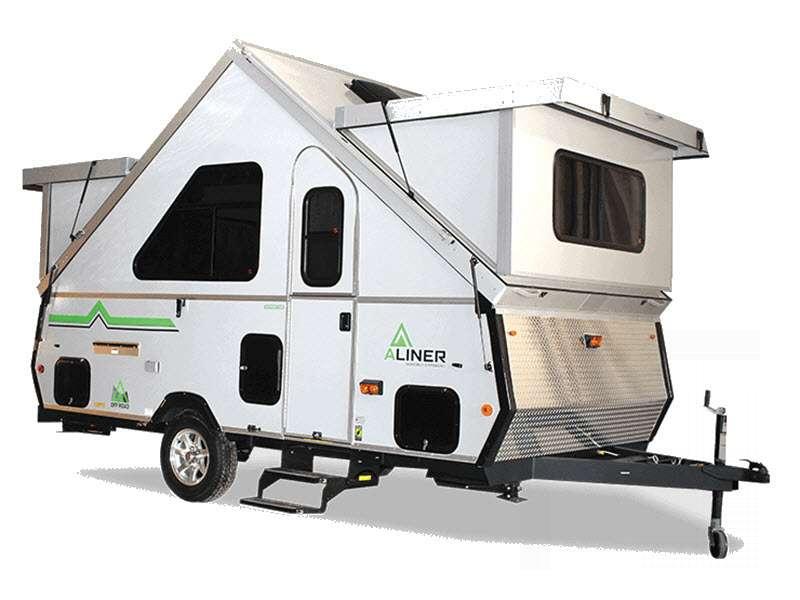

The Expedition A-frame campers offer the deluxe equipment level by ALiner which makes it perfect for a home on wheels! These large campers offer a 15-foot box on an 18-foot frame, and can be used by two, three or maybe one more depending on the Expedition you choose.

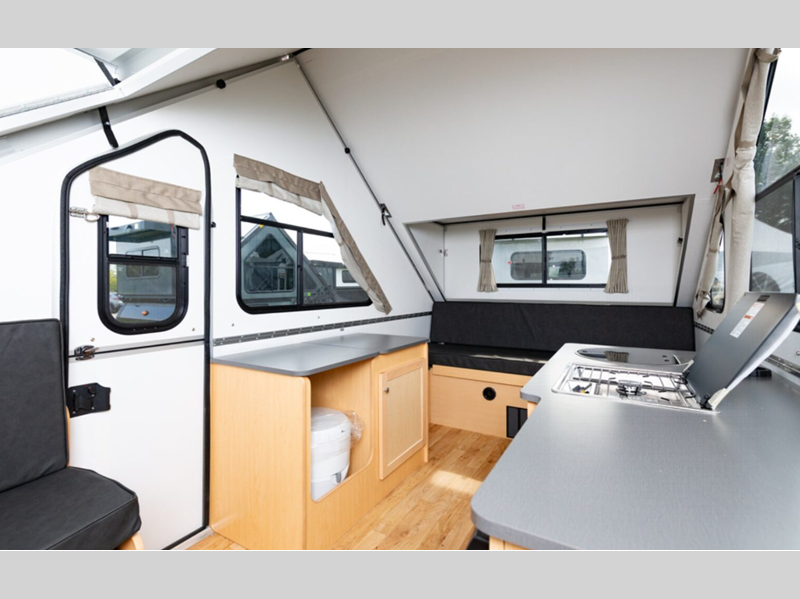

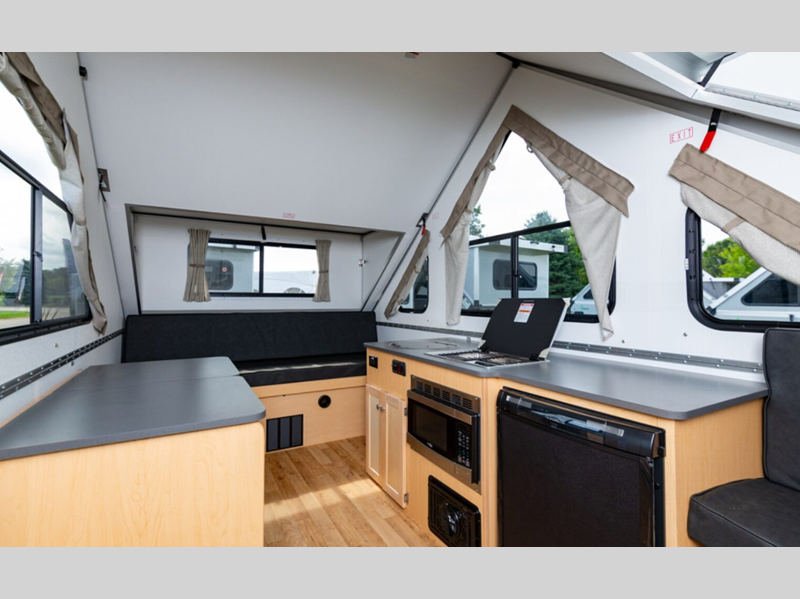

Each is built lightweight with an Azdel, thermoplastic composite interior wall and ceiling panels, and includes a 3,500 lb. axle, and a black and gray exterior package. There are also 14" tires, four stabilizer jacks, plus high wind lift assist and a command A/C heat pump. The interior offers 30% more storage room, more living space, taller counter tops, a taller bed, a flush mount euro sink and stove, and the highest capacity chassis in the ALiner brand.



Make your selection today from a sofa bed model or a permanent bed model with more living space; Choose your favorite ALiner Expedition A-frame camper!

  • Expedition Permanent Bed

    Expedition Permanent Bed Floorplan Image

    ALiner Expedition A-frame Permanent Bed highlights: Queen Bed Front Dinette ... more about Expedition Permanent Bed

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Length 18 ft
    Ext Width 7 ft
    Ext Height 5 ft 8 in
    Hitch Weight 240 lbs
    GVWR 3500 lbs
    Dry Weight 1850 lbs
    Fresh Water Capacity 11 gals
    Tire Size 14"
    Available Beds Queen
    Refrigerator Type Gas/Electric
    Refrigerator Size 3 cu ft
    Cooktop Burners 2
    Axle Weight 3500 lbs
    Axle Count 1

Expedition Features:

Standard Features



Standard Equipment

  • Black and Gray Exterior Package
  • 11-Gallon Fresh-Water Tank
  • 14" Tires
  • 3500 lb. Axle
  • 4 Stabilizer Jacks
  • High Wind Lift Assist
  • Water Heater
  • Water Pump
  • Furnace
  • Command A/C Heat Pump
  • 3.0 cu. ft. Refrigerator w/Freezer
  • 3 Interior Electrical Outlets
  • Exterior Outlet
  • 2 Burner Stove
  • LED Running Lights
  • Outside Shower
  • Swivel Cassette Toilet
  • Sink
  • Microwave
  • Azdel Lightweight, Thermoplastic Composite Interior Wall and Ceiling Panels
  • Performax 500 Premium Marine Grade Flooring
  • Fantastic Vent-Fan
  • 35 Amp Converter
  • High Density Foam, Hypoallergenic Cushions and Mattresses
  • Two Exterior Bag Doors
  • Two Skylights with Night Shades (Dormer Option Eliminates Skylight with Night Shade)
  • Tubular Steel Frame
  • E-Coated Frame with Powder Coating on the Front Tongue and Bumper
  • 10" Electric Brakes
  • Vacuum Bonded Fiberglass Panels
  • Diamond Plate Stone Guard
  • Amber Porch Light
  • Dual Propane Tanks
  • Solar Port
  • Anodized Aluminum Extrusion
  • Aluminum Wheels
  • Full Size Radial Spare Tire and Carrier
  • Battery Tray
  • Hardwood Cabinet Doors
  • Additional Corner Windows - Panoramic Views
  • LED Interior Floor Light
  • Cable Hookup
  • Exterior Propane Connection for Optional Outside Grill or Stove
  • Front Utility Light

Options

  • Front Soft Dormer
  • Front Hard Dormer
  • Rear Soft Dormer
  • Rear Hard Dormer
  • Outside Grill
  • Off Road Package
  • Rear Sofa Layout
  • Rear Mattress Layout

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Manu-Facts:

ALiner Logo
In the early 1970s, Ralph Tait had an idea. So he went into his garage in Bend, Oregon and began tinkering. Several weeks and a few blisters later, he emerged with a revolutionary design for the first A-frame pop-up camper.

It was sensible. It was different. And it was light enough to be towed with just about any vehicle. Friends wanted one. Family wanted one. Friends of family wanted one. As word of mouth spread, Ralph found himself making more campers out of his garage. That’s when Ralph’s sons had their own bright idea. Why not turn this hobby into a real business?

The family moved to Pennsylvania and began making Aliner campers. Two brothers would build one. The third brother would hitch it to the family station wagon and drive across the country until he sold it. When he returned, the brothers would have another Aliner waiting. After years of hard work and several hundred thousand miles on the poor station wagon, the family retired in 2007. Today we continue to build every Aliner with the same quality, craftsmanship and pride as Ralph and his sons did for over 30 years.
